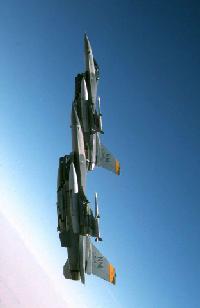

Pictures of Fighterpilot Shibu, flying the F-16 Eagle Fighter in the U.S AIRFORCE

FIGHTER JET OF THE WEEK - F-16 FIGHTING FALCON
USAF Fact Sheet

F-16 Fighting Falcon



Mission
The F-16 Fighting Falcon is a compact, multirole fighter aircraft. It is highly maneuverable and has proven itself in air-to-air combat and air-to-surface attack. It provides a relatively low-cost, high-performance weapon system for the United States and allied nations.


Features
In an air combat role, the F-16's maneuverability and combat radius (distance it can fly to enter air combat, stay, fight and return) exceed that of all potential threat fighter aircraft. It can locate targets in all weather conditions and detect low flying aircraft in radar ground clutter. In an air-to-surface role, the F-16 can fly more than 500 miles (860 kilometers), deliver its weapons with superior accuracy, defend itself against enemy aircraft, and return to its starting point. An all-weather capability allows it to accurately deliver ordnance during non-visual bombing conditions.

In designing the F-16, advanced aerospace science and proven reliable systems from other aircraft such as the F-15 and F-111 were selected. These were combined to simplify the airplane and reduce its size, purchase price, maintenance costs and weight. The light weight of the fuselage is achieved without reducing its strength. With a full load of internal fuel, the F-16 can withstand up to nine G's -- nine times the force of gravity -- which exceeds the capability of other current fighter aircraft.

The cockpit and its bubble canopy give the pilot unobstructed forward and upward vision, and greatly improved vision over the side and to the rear. The seat-back angle was expanded from the usual 13 degrees to 30 degrees, increasing pilot comfort and gravity force tolerance. The pilot has excellent flight control of the F-16 through its "fly-by-wire" system. Electrical wires relay commands, replacing the usual cables and linkage controls. For easy and accurate control of the aircraft during high G-force combat maneuvers, a side stick controller is used instead of the conventional center-mounted stick. Hand pressure on the side stick controller sends electrical signals to actuators of flight control surfaces such as ailerons and rudder.

Avionics systems include a highly accurate inertial navigation system in which a computer provides steering information to the pilot. The plane has UHF and VHF radios plus an instrument landing system. It also has a warning system and modular countermeasure pods to be used against airborne or surface electronic threats. The fuselage has space for additional avionics systems.


Background
The F-16A, a single-seat model, first flew in December 1976. The first operational F-16A was delivered in January 1979 to the 388th Tactical Fighter Wing at Hill Air Force Base, Utah.

The F-16B, a two-seat model, has tandem cockpits that are about the same size as the one in the A model. Its bubble canopy extends to cover the second cockpit. To make room for the second cockpit, the forward fuselage fuel tank and avionics growth space were reduced. During training, the forward cockpit is used by a student pilot with an instructor pilot in the rear cockpit.

All F-16s delivered since November 1981 have built-in structural and wiring provisions and systems architecture that permit expansion of the multirole flexibility to perform precision strike, night attack and beyond-visual-range interception missions. This improvement program led to the F-16C and F-16D aircraft, which are the single- and two-place counterparts to the F-16A/B, and incorporate the latest cockpit control and display technology. All active units and many Air National Guard and Air Force Reserve units have converted to the F-16C/D.

The F-16 is being built under an unusual agreement creating a consortium between the United States and four NATO countries: Belgium, Denmark, the Netherlands and Norway. These countries jointly produced with the United States an initial 348 F-16s for their air forces. Final airframe assembly lines were located in Belgium and the Netherlands. The consortium's F-16s are assembled from components manufactured in all five countries. Belgium also provides final assembly of the F100 engine used in the European F-16s. The long-term benefits of this program will be technology transfer among the nations producing the F-16, and a common-use aircraft for NATO nations. This program increases the supply and availability of repair parts in Europe and improves the F-16's combat readiness.

USAF F-16 multi-mission fighters were deployed to the Persian Gulf in 1991 in support of Operation Desert Storm, where more sorties were flown than with any other aircraft. These fighters were used to attack airfields, military production facilities, Scud missiles sites and a variety of other targets.


General Characteristics
Primary Function: Multirole fighter

Builder: Lockheed Martin Corp.

Power Plant: F-16C/D: one Pratt and Whitney F100-PW-200/220/229 or General Electric F110-GE-100/129

Thrust: F-16C/D, 27,000 pounds(12,150 kilograms)

Length: 49 feet, 5 inches (14.8 meters)

Height: 16 feet (4.8 meters)

Wingspan: 32 feet, 8 inches (9.8 meters)

Speed: 1,500 mph (Mach 2 at altitude)

Ceiling: Above 50,000 feet (15 kilometers)

Maximum Takeoff Weight: 37,500 pounds (16,875 kilograms)

Range: More than 2,000 miles ferry range (1,740 nautical miles)

Armament: One M-61A1 20mm multibarrel cannon with 500 rounds; external stations can carry up to six air-to-air missiles, conventional air-to-air and air-to-surface munitions and electronic countermeasure pods.

Unit cost: F-16C/D, $20 million plus

Crew: F-16C: one; F-16D: one or two

Date Deployed: January 1979

Inventory: Active force, 444; Air National Guard, 305; Reserve, 60.

Point of Contact

Air Combat Command, Public Affairs Office; 115 Thompson St., Ste. 211; Langley Air Force Base, Va. 23665-1987; DSN 574-5471 or (757) 764-5471.



F/A-18 HORNET
Description: All-weather fighter and attack aircraft. The single-seat F/A-18 Hornet is the nation's first strike-fighter. It was designed for traditional strike applications such as interdiction and close air support without compromising its fighter capabilities. With its excellent fighter and self-defense capabilities, the F/A-18 at the same time increases strike mission survivability and supplements the F-14 Tomcat in fleet air defense. F/A-18 Hornets are currently operating in 37 tactical squadrons from air stations world-wide, and from 10 aircraft carriers. It is proudly flown by the U.S. Navy's Blue Angels Flight Demonstration Squadron.


Features: The F/A-18 Hornet, an all-weather aircraft, is used as an attack aircraft as well as a fighter. In its fighter mode, the F/A-18 is used primarily as a fighter escort and for fleet air defense; in its attack mode, it is used for force projection, interdiction and close and deep air support.


Background: The F/A-18 demonstrated its capabilities and versatility during Operation Desert Storm, shooting down enemy fighters and subsequently bombing enemy targets with the same aircraft on the same mission, and breaking all records for tactical aircraft in availability, reliability, and maintainability.


The aircraft's survivability was proven by Hornets taking direct hits from surface-to-air missiles, recovering successfully, being repaired quickly, and flying again the next day. The F/A-18 is a twin engine, mid-wing, multi-mission tactical aircraft. The F/A-18A and C are single seat aircraft. The F/A-18B and D are dual-seaters. The B model is used primarily for training, while the D model is the current Navy aircraft for attack, tactical air control, forward air control and reconnaissance squadrons. The newest models, the E and F were rolled out at McDonnell Douglas on Sept. 17, 1995, and are currently undergoing further testing at the Patuxent Naval Air Station in Maryland. The E is a single seat while the F is a two-seater.


All F/A-18s can be configured quickly to perform either fighter or attack roles or both, through selected use of external equipment to accomplish specific missions. This "force multiplier" capability gives the operational commander more flexibility in employing tactical aircraft in a rapidly changing battle scenario. The fighter missions are primarily fighter escort and fleet air defense; while the attack missions are force projection, interdiction, and close and deep air support.


The F/A-18C and D models are the result of a block upgrade in 1987 incorporating provisions for employing updated missiles and jamming devices against enemy ordnance. C and D models delivered since 1989 also include an improved night attack capability.

Points of Contact:
Navy:
Commander
Naval Air Systems Command
Office of Public Affairs
47122 Liljencrantz Road
Patuxent River, MD 20670-5440
(301)342-7512


Marine Corps:
Headquarters, US Marine Corps
Division of Public Affairs
Washington, DC 20380-1775



General Characteristics, C and D models
Primary Function: Multi-role attack and fighter aircraft
Contractor: Prime: McDonnell Douglas; Major Subcontractor: Northrop
Unit Cost: $ 24 million
Propulsion: Two F404-GE-402 enhanced performance turbofan engines
Thrust: 17,700 pounds (8,027 kg) static thrust per engine
Length: 56 feet (16.8 meters)
Height: 15 feet 4 inches (4.6 meters)
Maximum Take Off Gross Weight: 51,900 pounds (23,537 kg)
Wingspan: 40 feet 5 inches (13.5 meters)
Range (w/external tanks):
Fighter: 1,379 nautical miles (1585.9 miles/2,537 km);
Attack: 1,333 nautical miles (1532.9 miles/2,453 km)
Ceiling: 50,000+ feet
Speed: Mach 1.7+
Crew:
A,C and E models: One
B,D and F models: Two
Armament: One M61A1/A2 Vulcan 20mm cannon;
External payload: AIM 9 Sidewinder, AIM 7 Sparrow, AIM-120 AMRAAM, Harpoon, Harm, Shrike, SLAM, SLAM-ER, Walleye, Maverick missiles; Joint Stand-Off Weapon (JSOW); Joint Direct Attack Munition (JDAM); various general purpose bombs, mines and rockets.
Date Deployed:
First flight, November 1978
Operational, October 1983 (A/B models); September 1987 (C/D models)


General Characteristics, E and F models
See also the Super Hornet page.

Primary Function: Multi-role attack and fighter aircraft
Contractor: McDonnell Douglas
Unit Cost: $ 35 million
Propulsion: Two F414-GE-400 turbofan engines
Thrust: 22,000 pounds (9,977 kg) static thrust per engine
Length: 60.3 feet (18.5 meters)
Height: 16 feet (4.87 meters)
Maximum Take Off Gross Weight: 66,000 pounds (29,932 kg)
Wingspan: 44.9 feet (13.68 meters)
Ceiling: 50,000+ feet
Speed: Mach 1.8+
Crew:
A,C and E models: One
B,D and F models: Two
Armament: One M61A1/A2 Vulcan 20mm cannon;
External payload: AIM 9 Sidewinder, AIM 7 Sparrow, AIM-120 AMRAAM, Harpoon, Harm, Shrike, SLAM, SLAM-ER, Walleye, Maverick missiles; Joint Stand-Off Weapon (JSOW); Joint Direct Attack Munition (JDAM); various general purpose bombs, mines and rockets.
First Flight December 1995
